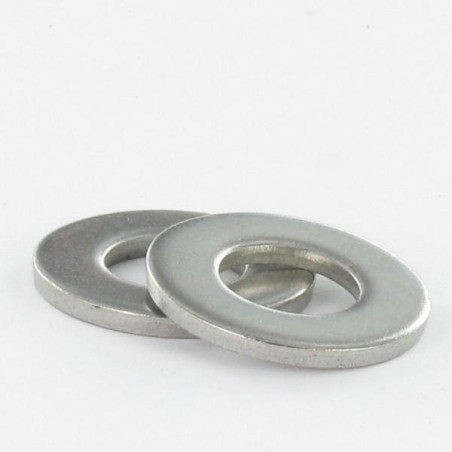

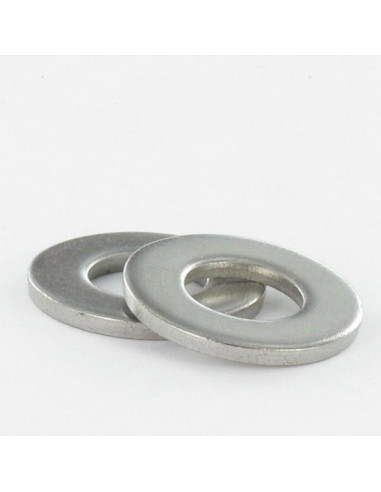

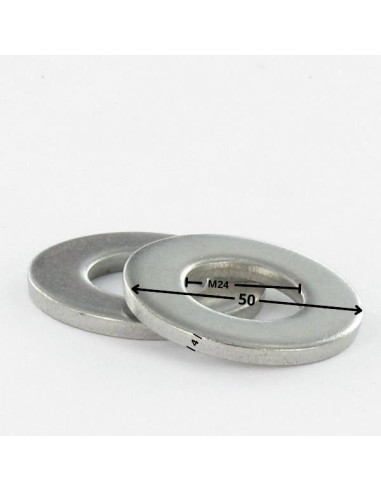

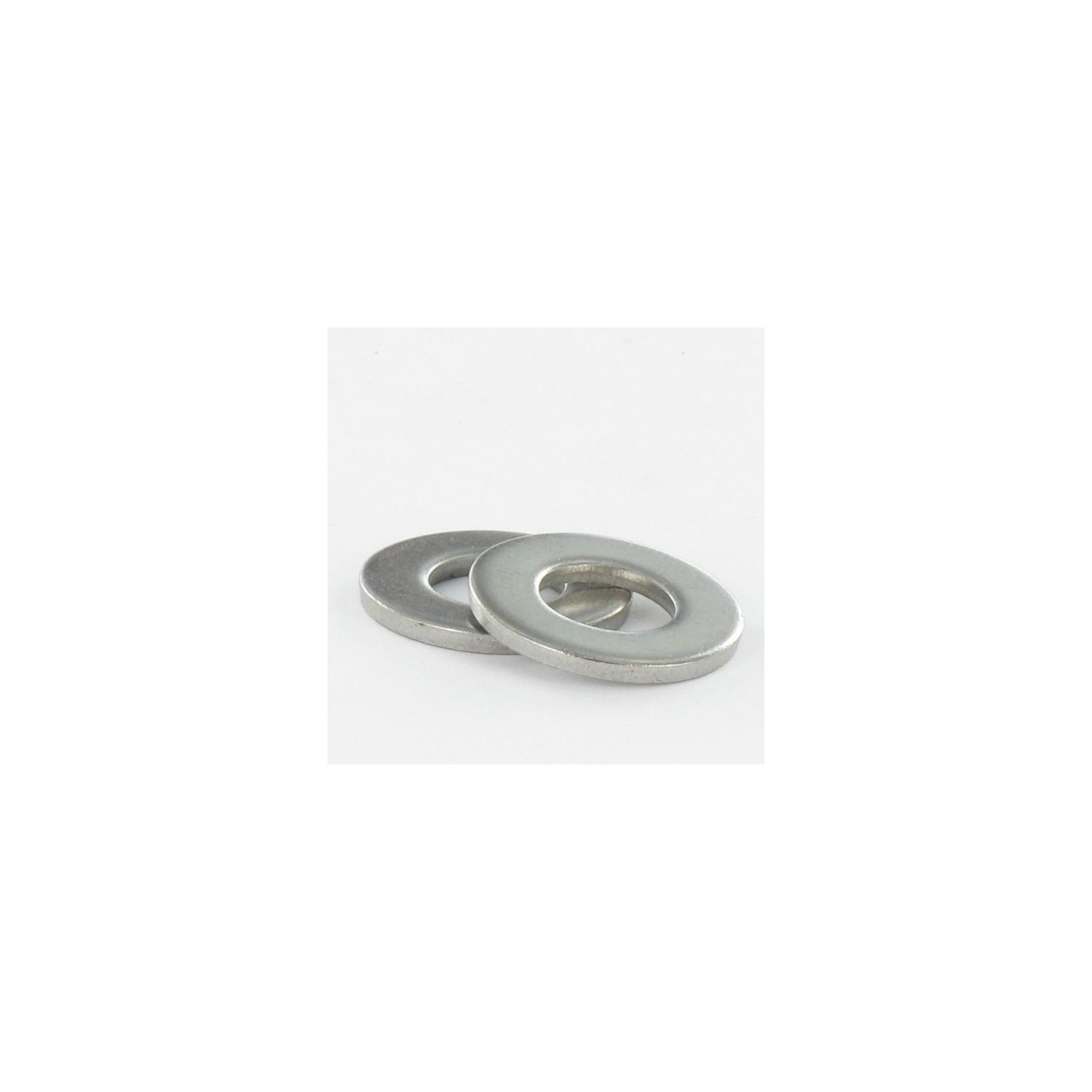

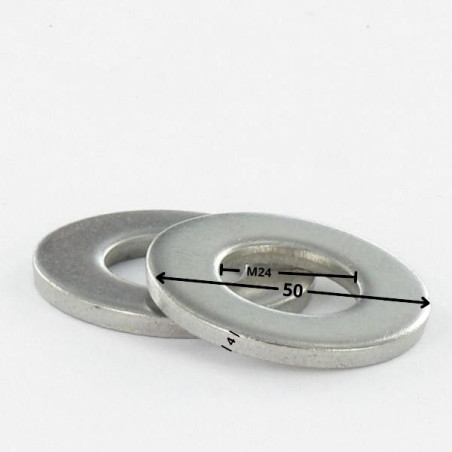

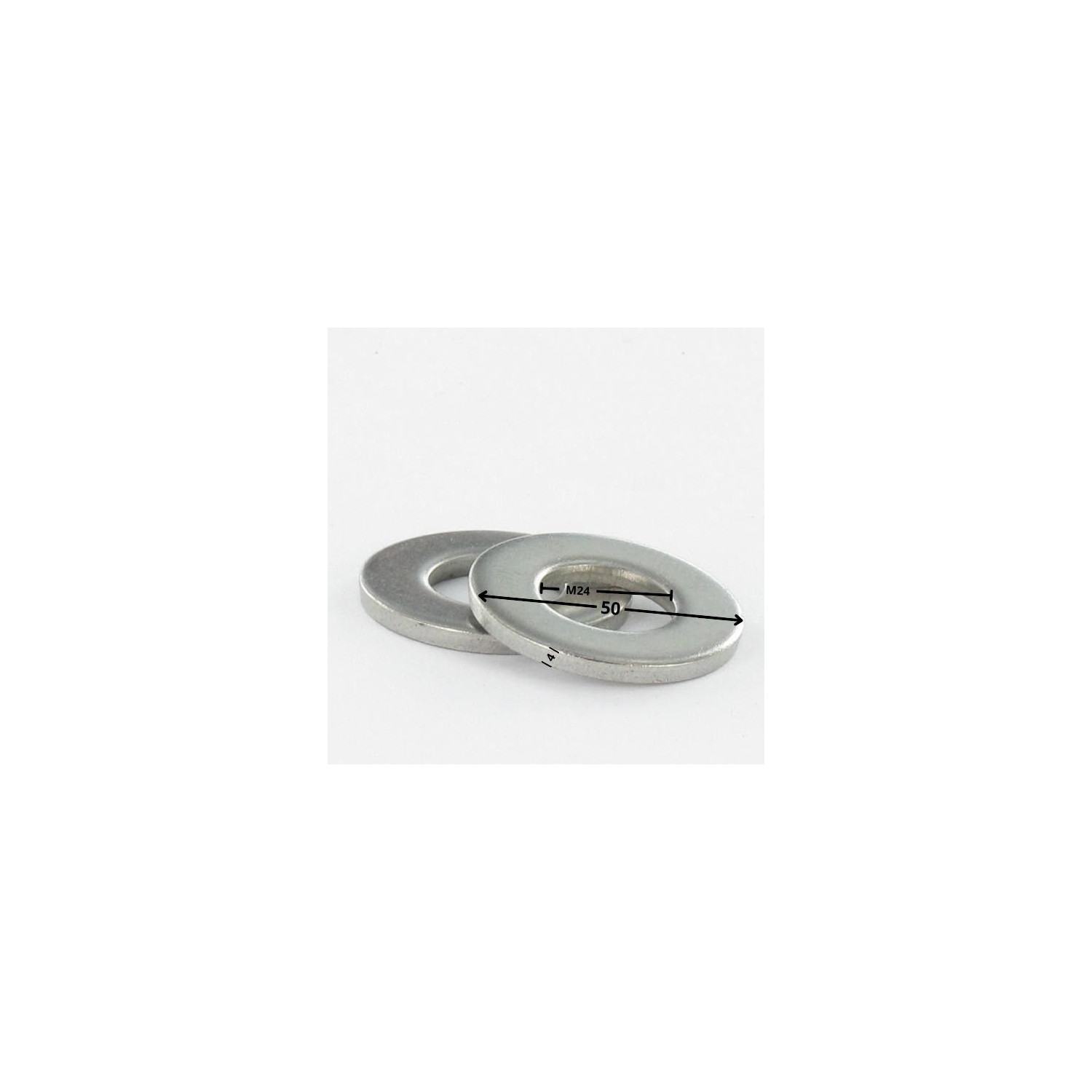

1 x Aluslevy Litteä M24x50x4 M Sinkitty teräs

Aluslevy Litteä M24x50x4 M Sinkitty teräs
Paksu = 4 MM, Pinnoite = Sinkitty valkoinen, Aine = Teräs, Standardi = NFE 25513,VS-NFE25513 LUOKKA C, Ammatit = Jordbruk

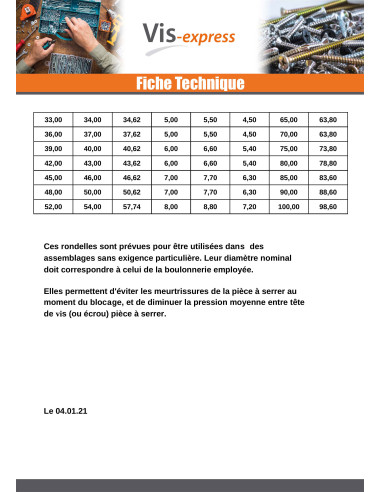

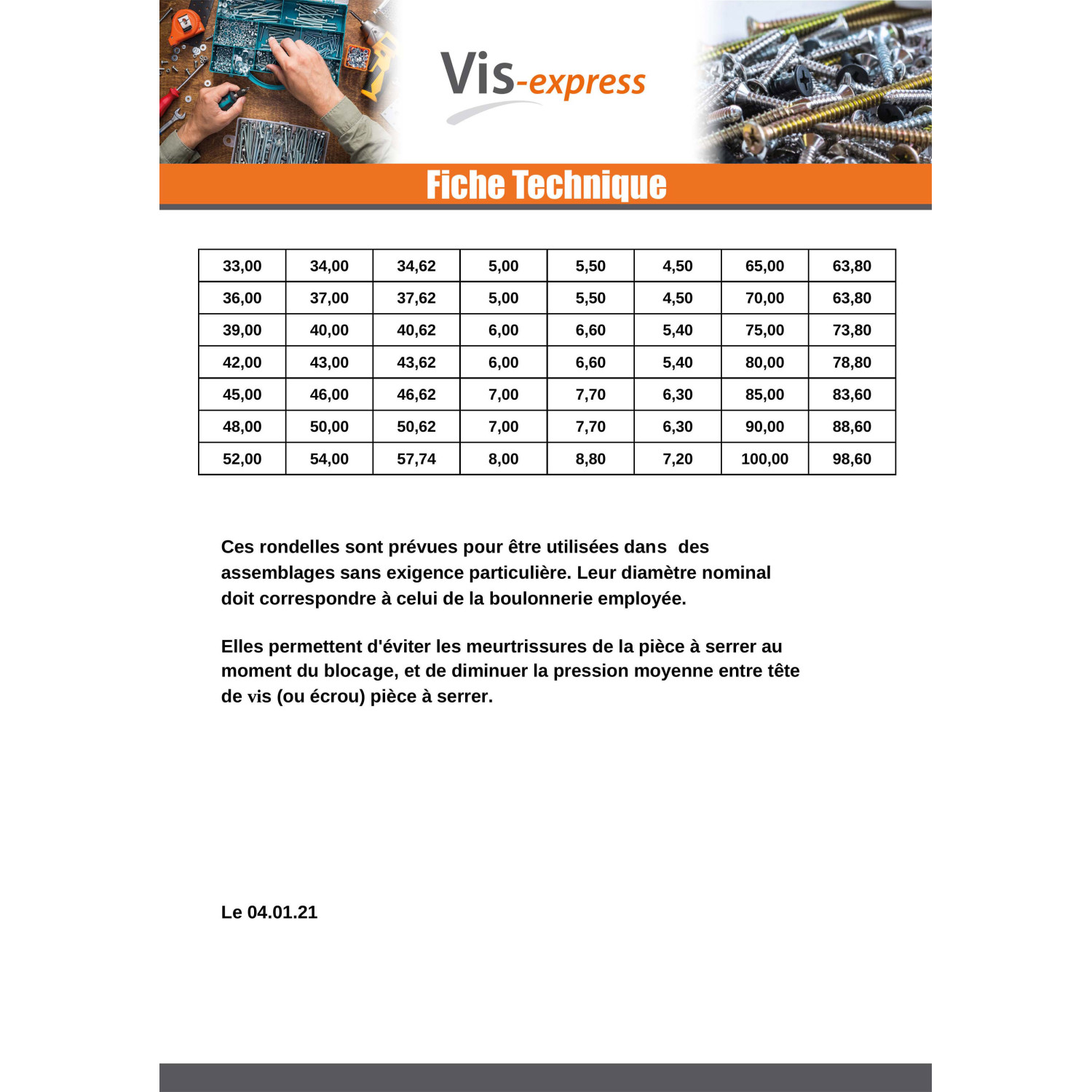

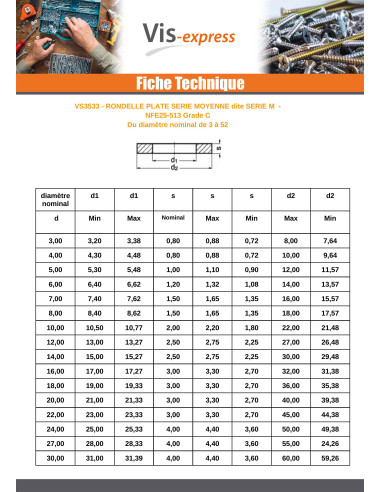

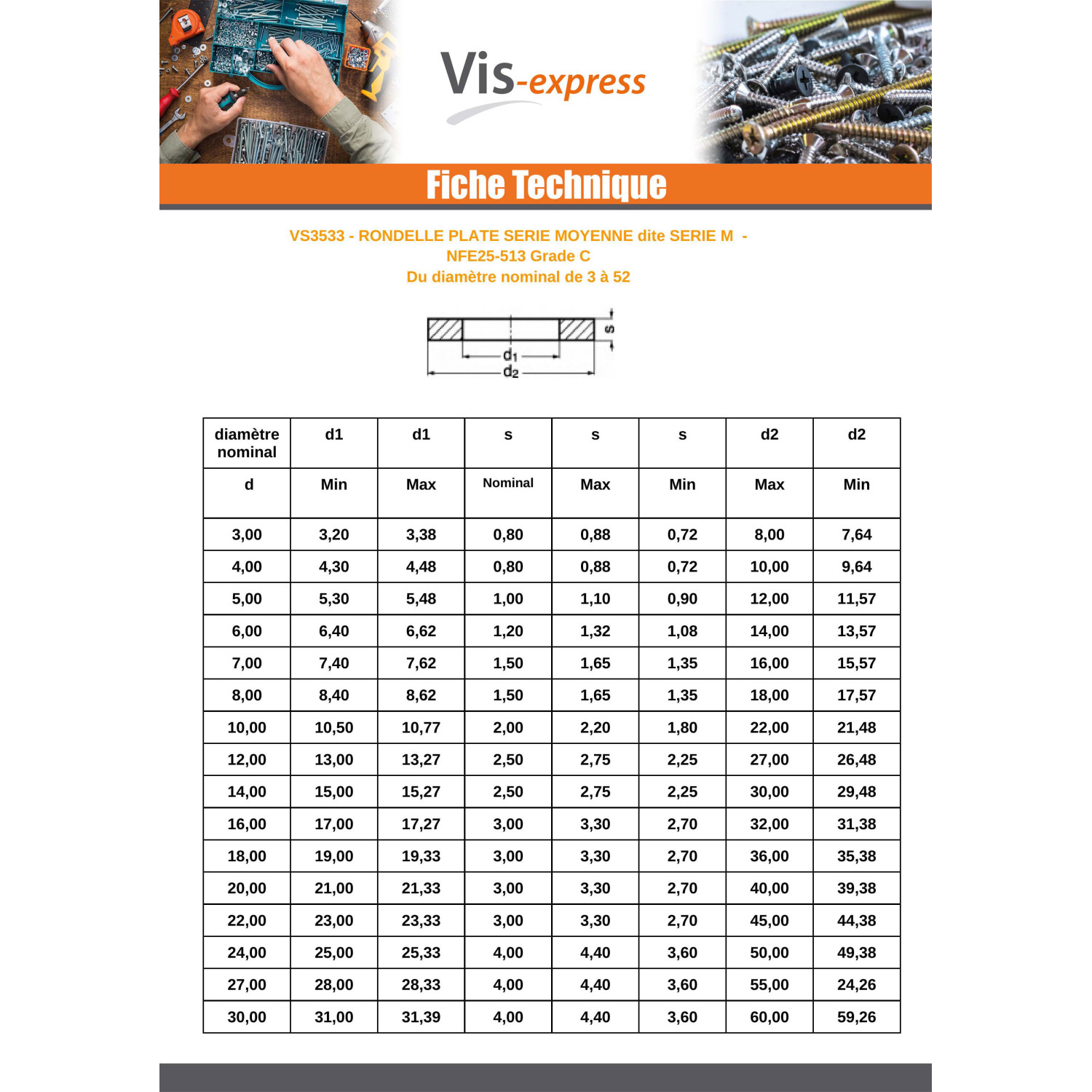

mittaohje (mm)

Halkaisija	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M33	M36	M39	M42	M45	M48	M52
Sisähalkaisija	3.2	4.3	5.3	6.4	7.4	8.4	10.5	13	15	17	19	21	23	25	28	31	34	37	40	43	46	50	54
Ulkohalkaisija	8	10	12	14	16	18	22	27	30	32	36	40	45	50	55	60	65	70	75	80	85	90	100
Paksuus	0.8	0.8	1	1.2	1.5	1.5	2	2.5	2.5	3	3	3	3	4	4	4	5	5	6	6	7	7	8

Muut referenssit : 012000012409 RONPLM24Z8 3VRPM90M24Z A190033 3VRP90M24Z 310574 90030002 40300022 RZ25 RONDPLM24B 6000862 ROND.MU24ZB 130539 4090008 7.801433 055537 AR01783 VB320560 R.M24 2404124 RON0006 032428 QUBV-0041 9A-1507010 HEUS9RZ24 MAZ24 31424000 6000-0277 3703043 FRT.600.0417 ARROND24 268190 1408032810 5004- 02536 304610 1511-000017 2G005863 00009464 0003029 0003029 065071 RONDPLA24 A00026749 X42813805 5447 N14916 RZ024 414 552487 3 A03070212 RON24X50 01127243 R140574 RP24 753175CG 753175CG vixx153 vixx153 RP24 123001013 123001013 123001013 0000620 R612-025 236832 RP24 606310 9908025 C30009041 C30009041 CO9RONPLAMU2 39423 1004011 FRON013 0601024 40300022 0008110 1352018 3024450 150128 DS1502024 OBRPZ24 110283 AJP24E RPD24Z 400 40197 ASSRON24001 2ORP24 3533002402 LM-M24/50/4. RZPM24 57274 19024001 2887266 16.180302402 0400152 519-0027-6 ASSRON24001 52204B FR0049 3703043 05717601 RON24 RPZ24504 CO600043 1713 900484 0601212 8221 8221 5013128 AN FA69805 V03-035 29305 101906 (A00026749) 3663072058392
