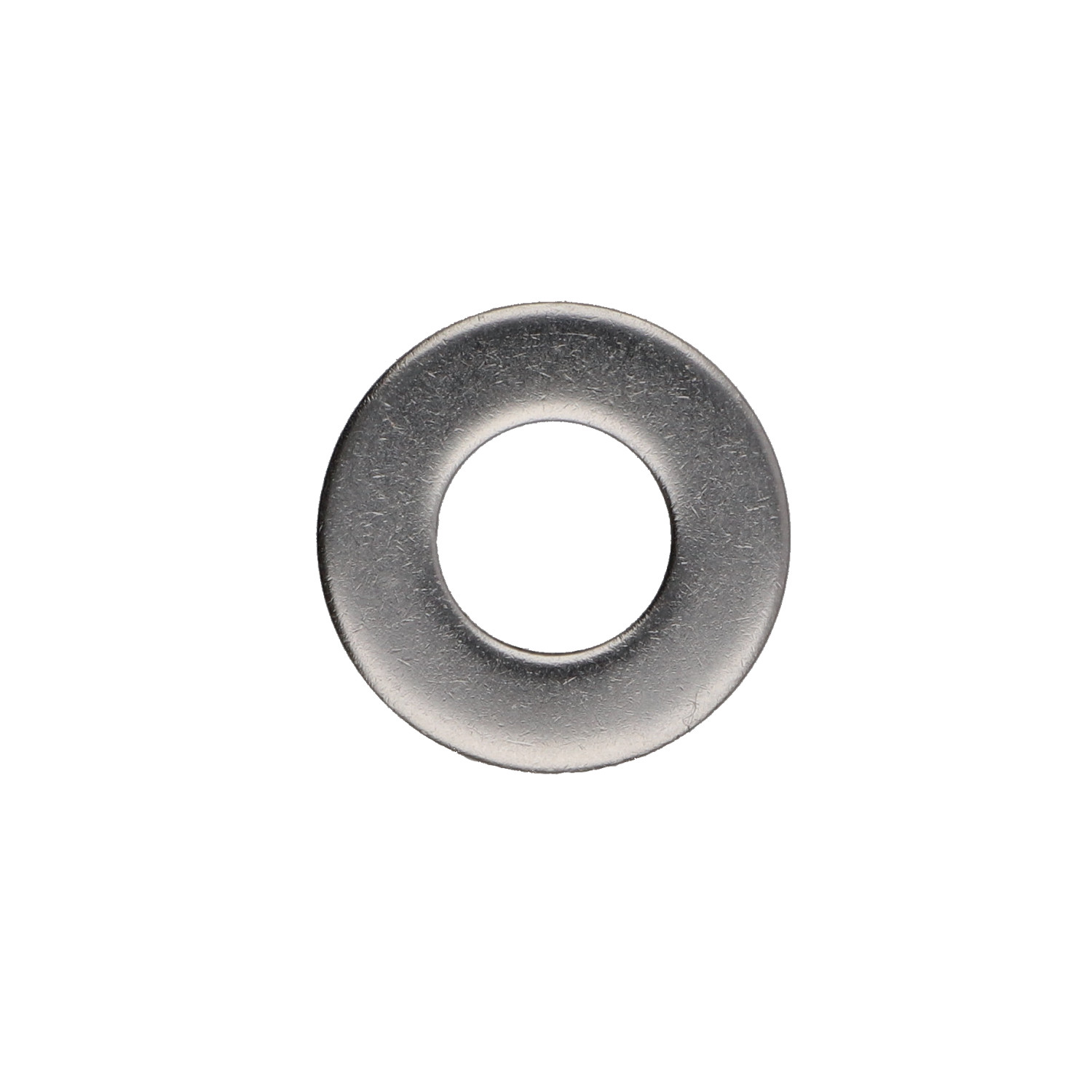

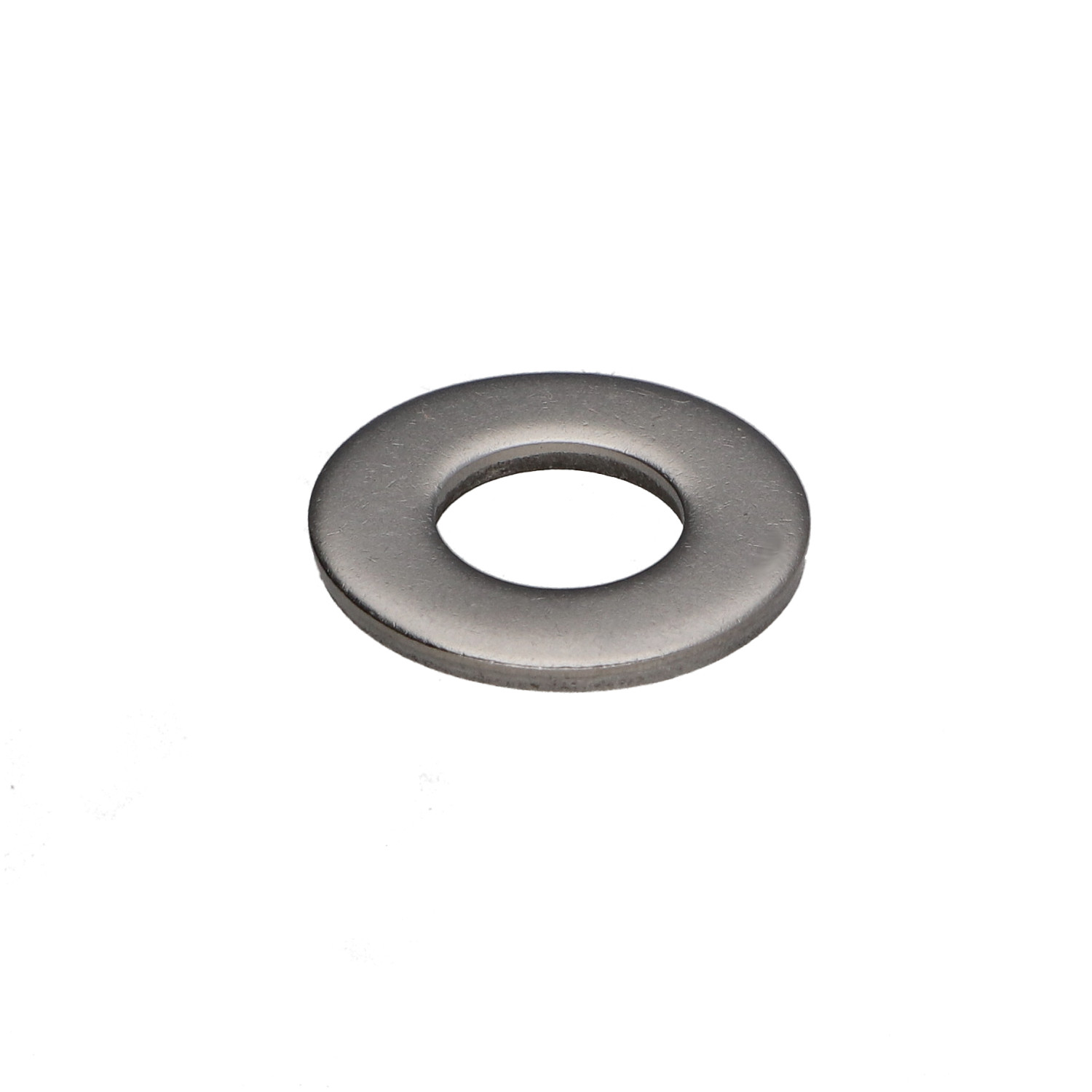

1 x Aluslevy Litteä M12X27X2.5 M Ruostumaton teräs A2

Aluslevy Litteä M12X27X2.5 M Ruostumaton teräs A2
Paksu = 2.5 MM, Aine = Ruostumaton teräs A2, Standardi = NFE 25513,VS-NFE25513 LUOKKA C

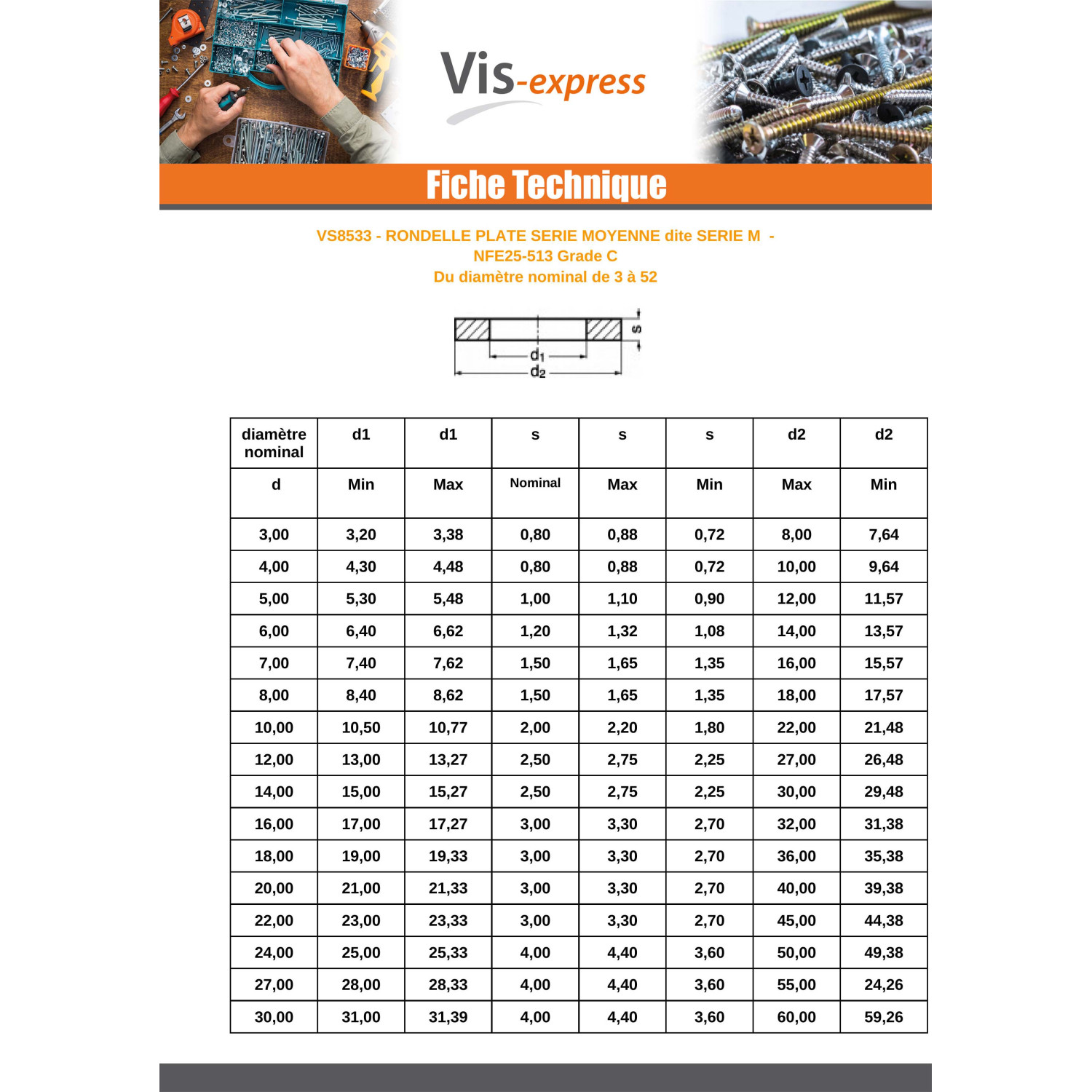

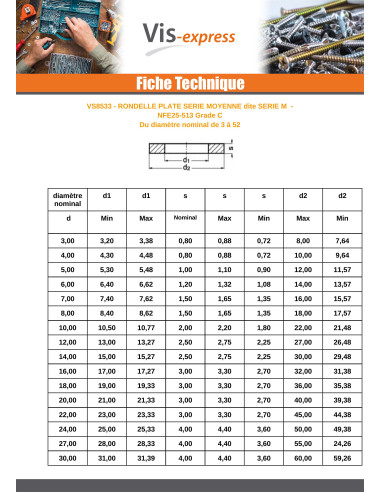

mittaohje (mm)

Halkaisija	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M33	M36	M39	M42	M45	M48	M52
Sisähalkaisija	3.2	4.3	5.3	6.4	7.4	8.4	10.5	13	15	17	19	21	23	25	28	31	34	37	40	43	46	50	54
Ulkohalkaisija	8	10	12	14	16	18	22	27	30	32	36	40	45	50	55	60	65	70	75	80	85	90	100
Paksuus	0.8	0.8	1	1.2	1.5	1.5	2	2.5	2.5	3	3	3	3	4	4	4	5	5	6	6	7	7	8

Muut referenssit : 6250112 ROA2MM12 155132 RONDM12 RDLINOX12 CMROM1200050 AVR01584 V01000001200 RI0012 RONPLM12A4I VISS0244 A04614 130553 115/R050 05609 0728113 RONDPL122725 A01350 642011200 20377 VP006A-MAT01 1202 22.11.050 23686.00.9 3005064 QURON018A 2BOVM1203I SO-03907 RDL-A2012 Y5K06432 IRDLM12 31026-30 CV-06-007 A0014395 5s0401089 CQVR120 14022142 VSE85330012 1606001192 FAVI 18 VINX5210 7133 998 05333 GRON0011 RD.12X27.I M12I G0019654 103762 S1012453 A101097 RPI12 F00179 V010001200 C30005005 C30005005 AERONDELPL12 2520560000 04607 CO9624104 701801B LN03 63 2002035 2204.002 FROIA2013X02 AR02310 523200163 515516 DS1504012 RDX2112 6612018 218008 171224 VIRPLIN12X27 000837 S1012453 151493-CH SI01100 106940 RPSM12 RON12PA RPM12A2 CV-06-0015 F05052 NC9S0888911 LM-M12/27-A2 RIPMA212 VI2010A 8111 MVISINO00023 RONDM12UA2 0400148 V010001200 167546 10030406 V001132 143A442 19951212 A11021911610 CO600005 NI20377 565624 RON8017F 0603026 611175 3504 A406008 462112 QUINCAI01954 DRONDELPLMU- RSB12-A2 3663072168268
